API Gateway Private Endpoints

code for article pfeilbr/api-gateway-private-endpoints-playground

learn API Gateway private endpoints

Setup Steps

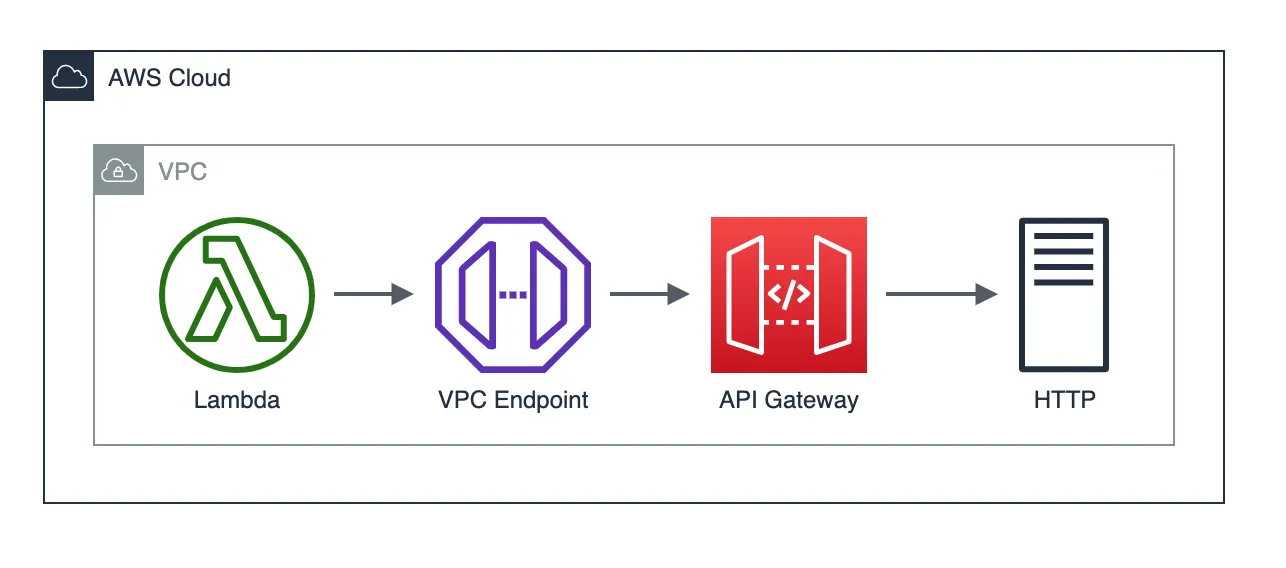

configure API Gateway private endpoint that leverages HTTP proxy integration. Test via lambda with VPC config that issues HTTP GET request to vpc endpoint.

Notes

supported on REST API endpoints (not HTTP API at the time 2021-04-05)
be sure to re-deploy API for policy changes
check security groups
check VPC endpoint policy
check lambda VPC config and security groups

API Gateway resource policy

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Deny",
            "Principal": "*",
            "Action": "execute-api:Invoke",
            "Resource": "arn:aws:execute-api:us-east-1:529276214230:scheqe4ymi/*",
            "Condition": {
                "StringNotEquals": {
                    "aws:sourceVpce": "vpce-02b487f2d021986fb"
                }
            }
        },
        {
            "Effect": "Allow",
            "Principal": "*",
            "Action": "execute-api:Invoke",
            "Resource": "arn:aws:execute-api:us-east-1:529276214230:scheqe4ymi/*"
        }
    ]
}

note the Deny + Allow combination*

Lambda test code

const https = require('https');

exports.handler =  (event, context, callback) => {
   // https://scheqe4ymi.execute-api.us-east-1.amazonaws.com/prod
    var options = {
      host: 'vpce-02b487f2d021986fb-yl0hav78.execute-api.us-east-1.vpce.amazonaws.com',
      path: '/prod/index.html',
      method: 'GET',
      port: 443,
      headers: {
          'Host':'scheqe4ymi.execute-api.us-east-1.amazonaws.com'
      }
    };

    const cb = function(response) {
      let str = '';
      response.on('data', function (chunk) {
        str += chunk;
      });
      response.on('end', function () {
        console.log(str);
        const response = {
            statusCode: 200,
            body: JSON.stringify(str),
        };
        callback(null, response)
        return response;
      });
    }

    https.request(options, cb).end();
}

note the Host header that allows for the request to be routed

Screenshots

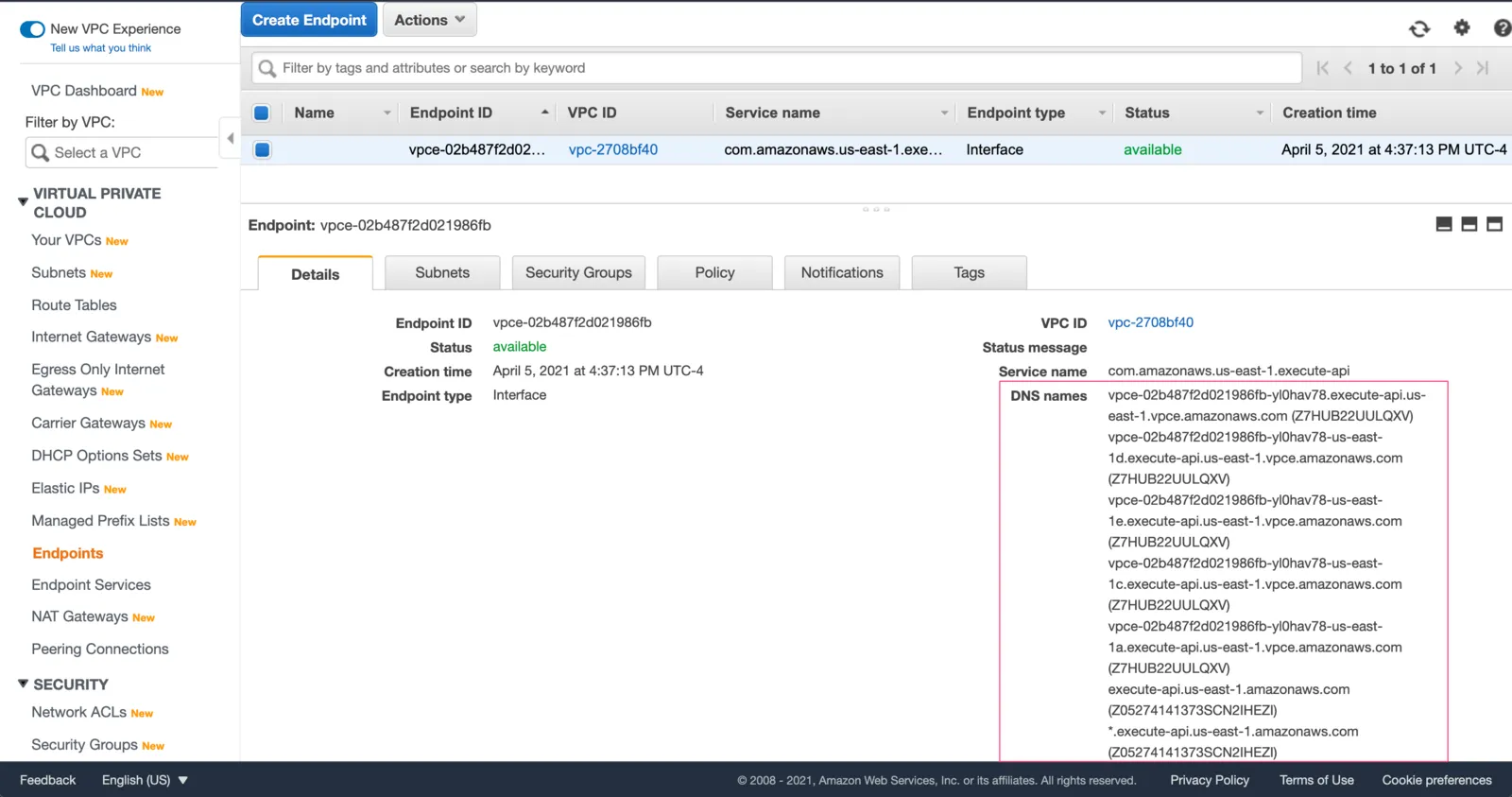

vpc endpoint

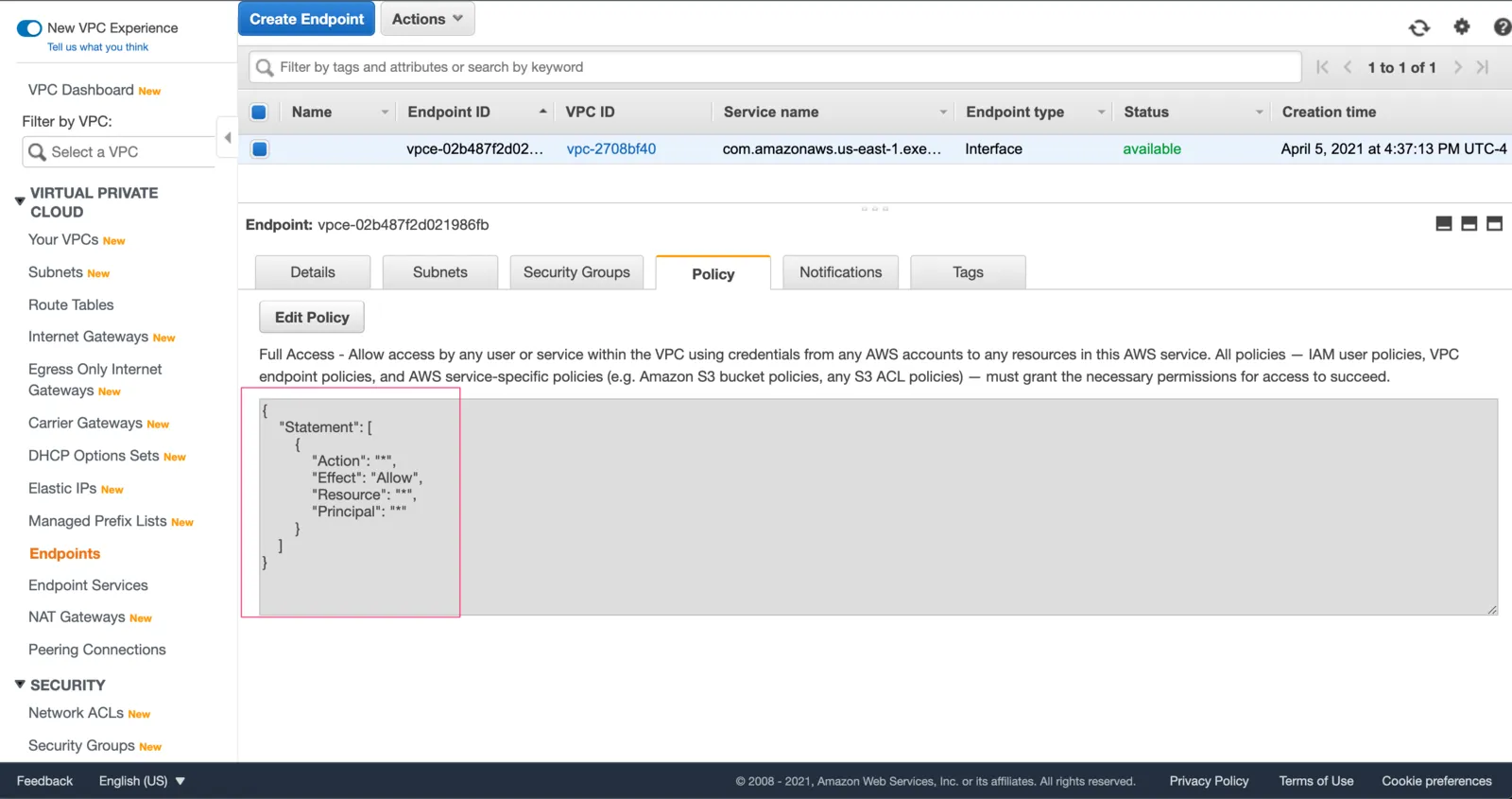

vpc endpoint policy

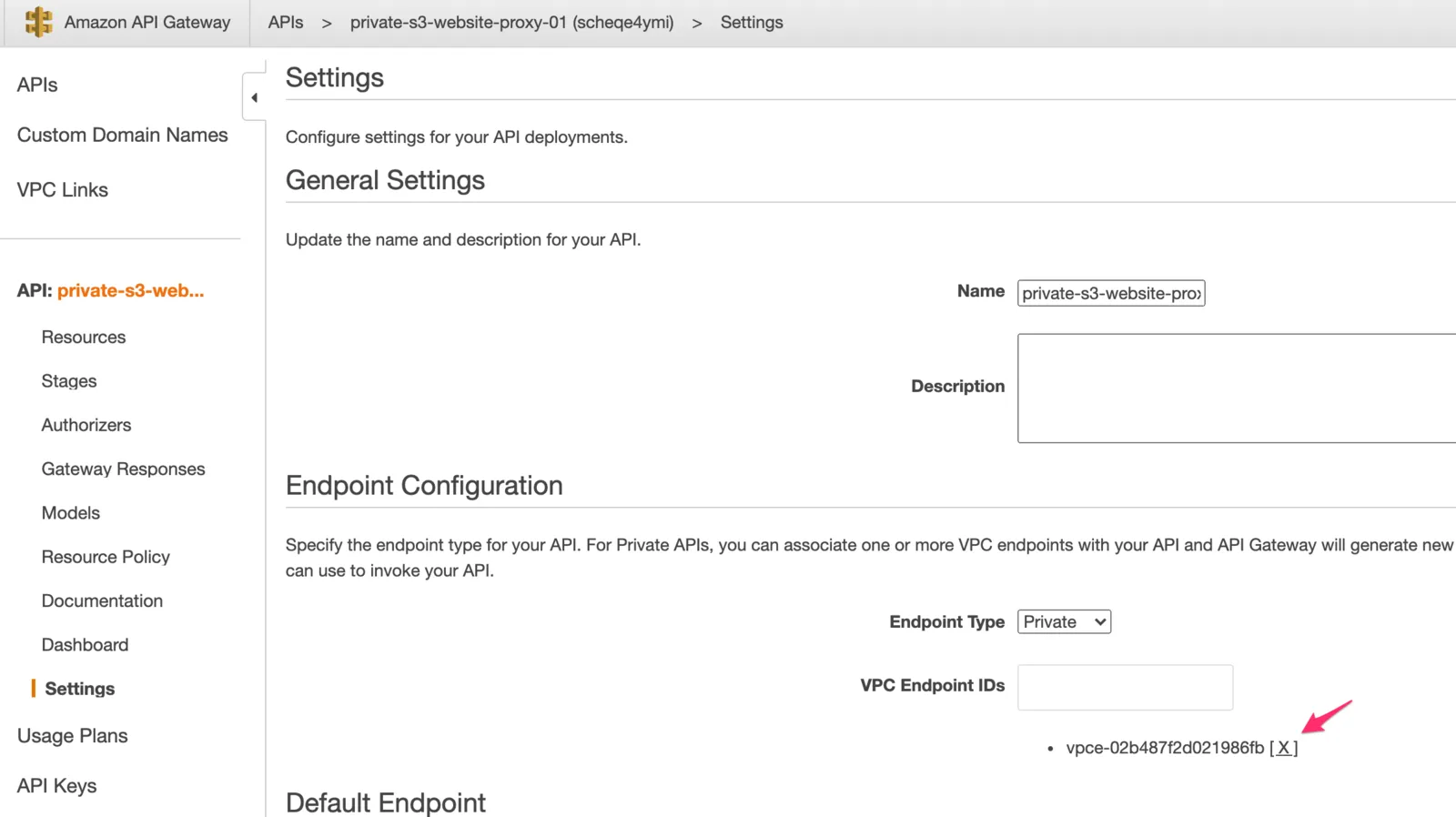

allowed vpc endpoint ids to api gateway
