AWS ALB to Lambda

learn ALB to Lambda integration

Notes

  • AWS provided DNSName for the ALB is of the format xxxxxxx.us-east-1.elb.amazonaws.com
  • the ALB DNSName does not provide SSL termination by default
  • you cannot request a certificate for the ALB DNSName (xxxxxxx.us-east-1.elb.amazonaws.com) via ACM
  • if you own the domain, you can request a certificate (e.g. alb01.allthecloudbits.com) via ACM and have it automatically validated via route 53 CNAME record (see DomainValidationOptions)

    In order for a AWS::CertificateManager::Certificate to be provisioned and validated in CloudFormation automatically, the DomainName property needs to be identical to one of the DomainName property supplied in DomainValidationOptions, if the ValidationMethod is DNS. Failing to keep them like-for-like will result in failure to create the domain validation records in Route53.

  • you can specify a single certificate for your AWS::ElasticLoadBalancingV2::Listener via the AWS::ElasticLoadBalancingV2::Listener Certificate property. If you need multipe certificates, use AWS::ElasticLoadBalancingV2::ListenerCertificate

Demo

based on alexcasalboni/template.yml - AWS ALB - AWS Lambda integration with CloudFormation (YAML) includes a custom domain name CNAME’d to the ALB hostname with ACM cert for https

lambda function code is inlined in template.yaml

# deploy stack
sam deploy

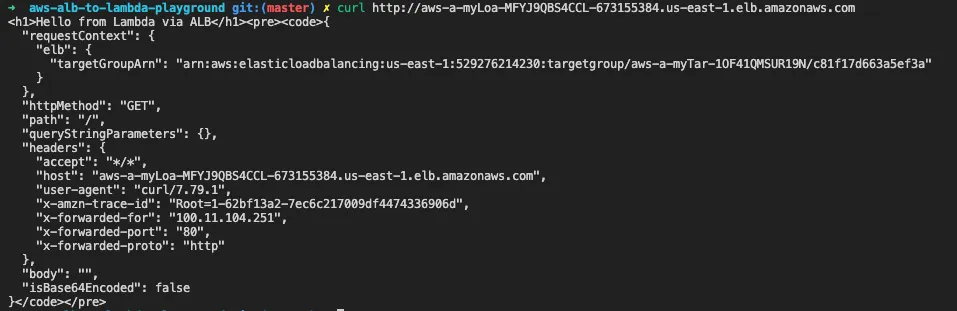

# check our ALB andpoint
curl http://aws-a-myLoa-MFYJ9QBS4CCL-673155384.us-east-1.elb.amazonaws.com

# output:
# <h1>Hello from Lambda via ALB</h1><pre><code>{
#   "requestContext": {
#     "elb": {
#       "targetGroupArn": "arn:aws:elasticloadbalancing:us-east-1:529276214230:targetgroup/aws-a-myTar-1OF41QMSUR19N/c81f17d663a5ef3a"
#     }
#   },
#   "httpMethod": "GET",
#   "path": "/",
#   "queryStringParameters": {},
#   "headers": {
#     "accept": "*/*",
#     "host": "aws-a-myLoa-MFYJ9QBS4CCL-673155384.us-east-1.elb.amazonaws.com",
#     "user-agent": "curl/7.79.1",
#     "x-amzn-trace-id": "Root=1-62bf13a2-7ec6c217009df4474336906d",
#     "x-forwarded-for": "100.11.104.251",
#     "x-forwarded-port": "80",
#     "x-forwarded-proto": "http"
#   },
#   "body": "",
#   "isBase64Encoded": false
# }</code></pre>

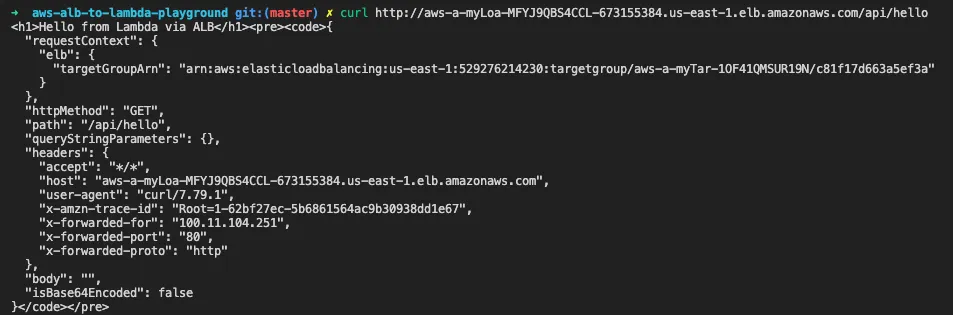

# check path based listener (`/api/*`)
curl http://aws-a-myLoa-MFYJ9QBS4CCL-673155384.us-east-1.elb.amazonaws.com/api/hello

# output:
# <h1>Hello from Lambda via ALB</h1><pre><code>{
#   "requestContext": {
#     "elb": {
#       "targetGroupArn": "arn:aws:elasticloadbalancing:us-east-1:529276214230:targetgroup/aws-a-myTar-1OF41QMSUR19N/c81f17d663a5ef3a"
#     }
#   },
#   "httpMethod": "GET",
#   "path": "/api/hello",
#   "queryStringParameters": {},
#   "headers": {
#     "accept": "*/*",
#     "host": "aws-a-myLoa-MFYJ9QBS4CCL-673155384.us-east-1.elb.amazonaws.com",
#     "user-agent": "curl/7.79.1",
#     "x-amzn-trace-id": "Root=1-62bf27ec-5b6861564ac9b30938dd1e67",
#     "x-forwarded-for": "100.11.104.251",
#     "x-forwarded-port": "80",
#     "x-forwarded-proto": "http"
#   },
#   "body": "",
#   "isBase64Encoded": false
# }</code></pre>

# check our custom domain
curl http://alb01.allthecloudbits.com

# check our custom domain https endpoint
curl https://alb01.allthecloudbits.com


# clean up
sam delete --no-prompts
