learn azure pipelines
Description
Pipeline performs an atomic deploy of static content from a github repo to a static site (Rout53 + ACM + WAF CloudFront + S3 when) a tag (release) is applied to the repo
Infrastructure Provisioning Steps
- create route 53 hosted zone for your domain name (e.g.
mydomain.com
) - update
DOMAIN_NAME
parameter inscripts/stack.sh
with the hosted zone name - provision aws resources
./scripts/stack.sh create
- Check ACM to confirm Certificate validation via DNS validation has completed. May need to add DNS validation records to route53 hosted zone.
- update pipeline variables
- REGION - default is us-east-1
- STACK_NAME - defined in
scripts/stack.sh
- AWS_ACCESS_KEY_ID -
AccessKey
output in./tmp/${STACK_NAME}-outputs.json
- AWS_SECRET_ACCESS_KEY -
SecretKey
output in./tmp/${STACK_NAME}-outputs.json
Website Content Publishing Steps
- ensure you have
develop
branch checked out (this corresponds to staging environment) - update website content in
public
directory and push to github. - (optional) update redirect rules in
routing-rules/routing-rules.txt
- push your commit(s) to remote (github)
- publish will run. can take up to 20 minutes to complete due CloudFront distribution update.
- verify updated content by visiting https://staging.mydomain.com
- to publish staging to production, checkout master branch and merge in develop
- push your commit(s) to remote (github)
- verify updated content by visiting https://mydomain.com and https://www.mydomain.com
Deprovisioning
- deprovision aws resources
./scripts/stack.sh delete
- (optional) manually delete S3 website and CloudFront logs buckets.
these are not deleted because they still contain objects
- (optional) run
./scripts/stack.sh delete
again to permanently delete stack

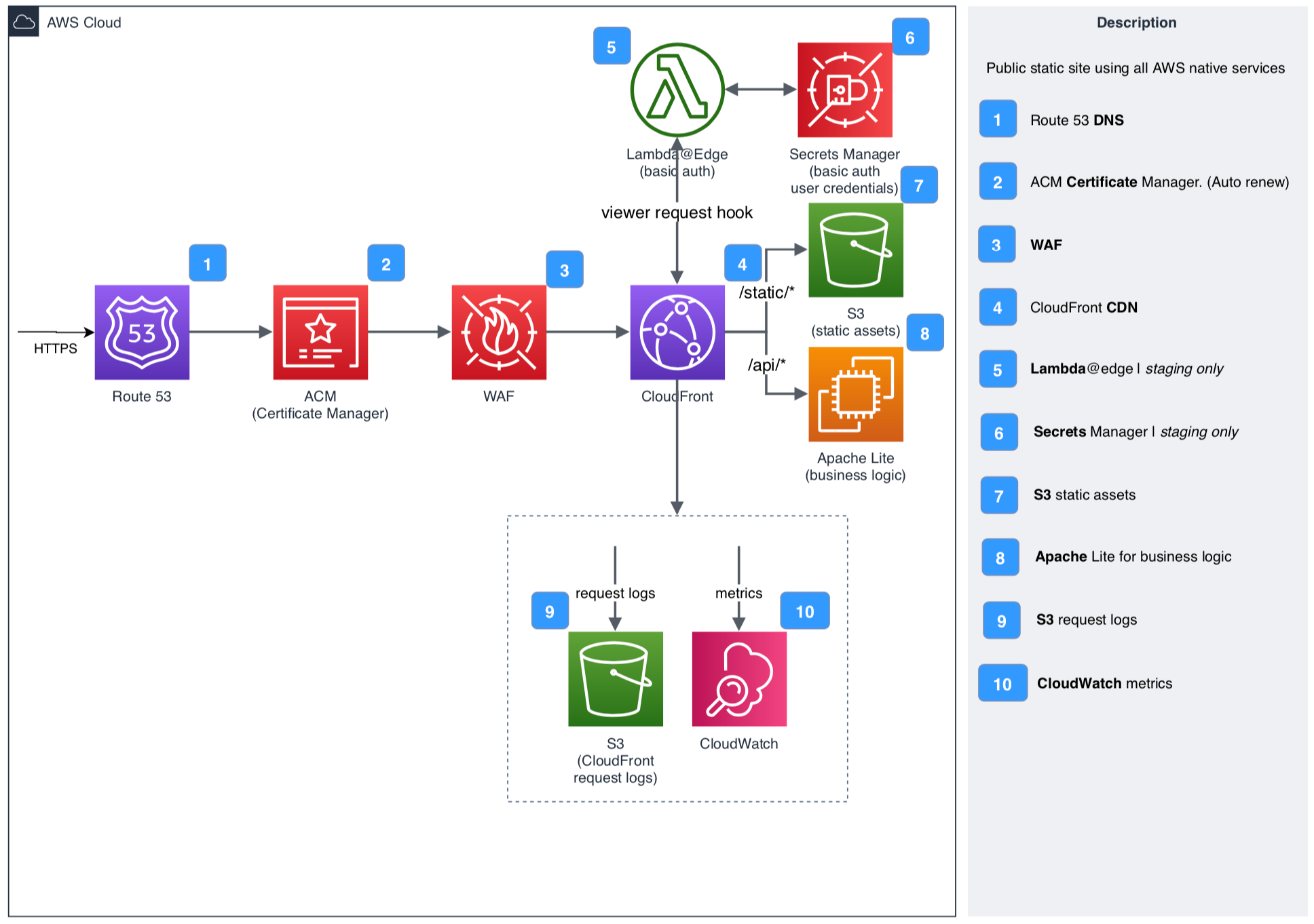

Architecture
Key Files and Directories
cfn-templates/resources.yaml
- CloudFormation stack for provisioning AWS resources.- S3 bucket(s) for static content (staging + production)
- CloudFront distribution(s) (staging + production)
- lambda@edge function for basic auth for staging site
- WAF Web ACL for CloudFront distribution(s)
- aws secrets manager secret (json doc) to store basic auth users
- S3 bucket for CloudFront access logs
- SSL Certificate (ACM)
- route53 root domain ALIAS record to CloudFront distribution
- route53 staging and www CNAME records to CloudFront distribution
- IAM user for CI/CD automation used by the azure pipeline
public
- static web contentscripts/stack.sh
- provisions AWS resourcestmp/automation-outputs.json
- stack outputs stored here. file gets created when stack is provisioned.scripts/tag-and-trigger-publish.sh
- tags and pushes the tag to github to trigger the publish pipelinescripts/publish.sh
- publishes a new version of the static site based on git tag. this is used by pipelineazure-pipelines.yml
- pipeline definition that get triggered on tag to publish to site
Screenshots

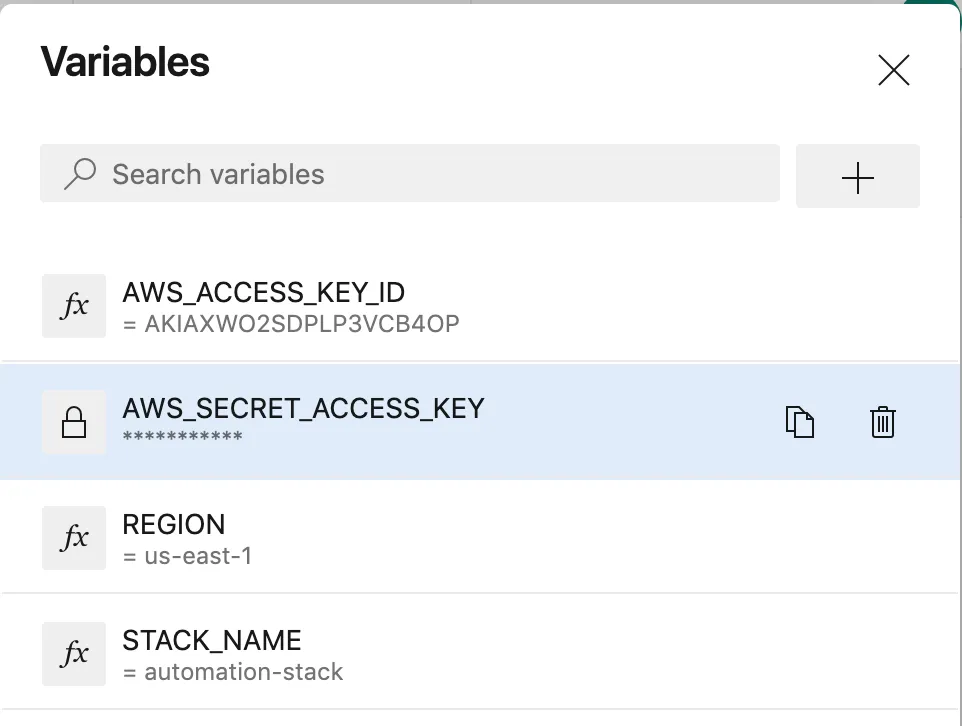

Pipeline Variables
TODO
- route53 CNAME record to point directly to S3 bucket website domain. used to troubleshoot/bypass cache issues.
- e.g. https://bucket.mysite.com -> https://bucket.s3-website-us-east-1.amazonaws.com
- research basic auth options
- ok not to have basic auth?
Completed / Cancelled
- add WAF ACL and associate to CF dist(s)
- add API origin to CF distribution for requests to /api/* path
- precedence to 1, forward query strings, cookies, all all HTTP methods
- this is IMPORTANT You can indeed put CF dist in front of APIG, the trick is to force HTTPS only “Viewer Protocol Policy” AND to NOT forward the HOST header because APIG needs SNI. see How do you add CloudFront in front of API Gateway
- How to use API Gateway with CloudFront
- add staging CloudFront distribution
- options
- separate bucket s3://stage s3://prod
- single bucket with prefix s3://bucket/stage/* s3://bucket/prod/*
- options
- update s3 redirect/routing rules for deploy version prefix
- e.g. domain.com/oldlink would point to /v0.0.1/newlink in the bucket. the
/v0.0.1
prefix need to be updated in all redirect rules on deploy - see https://docs.aws.amazon.com/cli/latest/reference/s3api/put-bucket-website.html
- e.g. domain.com/oldlink would point to /v0.0.1/newlink in the bucket. the
- more reliable method of picking the origin path to update since there are two origins
- create IAM policy and role for resource provisioning
- look at CloudFormation | Stack | Resources view for resource types
- specify resource name prefix and suffix as variable to allow for change
- specify role-arn for cloudformation cli
- redirects
- options
- via lambda@edge
- check if WAF supports
- S3 bucket routing rules (
AWS::S3::Bucket RoutingRule
) - s3 object metadata header. see (Optional) Configuring a Webpage Redirect and
x-amz-website-redirect-location
If the bucket is configured as a website, redirects requests for this object to another object in the same bucket or to an external URL. Amazon S3 stores the value of this header in the object metadata.
- trailing slashes: see the following on how to handle Re: S3 make a non-trailing slash URL send a 301 instead of a 302
- options
- basic auth on staging cloudfront dist
- options
- lambda@edge
- WAF rule for Authorization header
- options
- update
scripts/publish.sh
with proper cache control for index.html (no-cache)aws s3 sync --cache-control 'max-age=604800' --exclude index.html build/ s3://mywebsitebucket/ aws s3 sync --cache-control 'no-cache' build/ s3://mywebsitebucket/
- deny requests directly to s3. must use domain. remove OAI and add this. this will allows redirects in S3 to work.
- see How do I use CloudFront to serve a static website hosted on Amazon S3? for details.
- TLDR; the referer is set on the CloudFront distribution and is a secret. the S3 bucket policy only allows requests from this referer
- I’m using an S3 REST API endpoint as the origin of my CloudFront distribution. Why am I getting 403 Access Denied errors?
- I’m using an S3 website endpoint as the origin of my CloudFront distribution. Why am I getting 403 Access Denied errors?
{ "Version": "2012-10-17", "Id": "http referer policy ${DomainName}", "Statement": [ { "Sid": "Allow get requests referred by ${DomainName}", "Effect": "Allow", "Principal": "*", "Action": "s3:GetObject", "Resource": "arn:aws:s3:::${BUCKET}/*", "Condition": { "StringLike": { "aws:Referer": [ "http://${DomainName}/*", "https://${DomainName}/*" ] } } }, { "Sid": "Explicit deny to ensure requests are allowed only from specific referer.", "Effect": "Deny", "Principal": "*", "Action": "s3:GetObject", "Resource": "arn:aws:s3:::${BUCKET}/*", "Condition": { "StringNotLike": { "aws:Referer": [ "http://${DomainName}/*", "https://${DomainName}/*" ] } } } ] }
Notes
- pipeline is running in azure DevOps tied to personal gmail account
Scratch
# delete all remote tags
git tag -l | xargs -n 1 git push --delete origin
# delete all local tags
git tag | xargs git tag -d
#REDIRECT_LOCATION="https://allthecloudbits.com/products/product02/"
REGION="us-east-1"
STACK_NAME="dev-agency-website"
BUCKET=$(aws cloudformation describe-stacks --region "${REGION}" --stack-name "${STACK_NAME}" --query "Stacks[0].Outputs[?OutputKey=='WebsiteBucketName'].OutputValue" --output text)
PREFIX="v0.0.1"
TARGET="${PREFIX}/about"
REDIRECT_LOCATION="/about/"
aws --profile automation-user s3api put-object \
--bucket "${BUCKET}" \
--key "${TARGET}" \
--website-redirect-location "${REDIRECT_LOCATION}" \
--content-length "0"
aws --profile automation-user s3api head-object \
--bucket "${BUCKET}" \
--key "${TARGET}"
aws --profile automation-user s3api delete-object \
--bucket "${BUCKET}" \
--key "${TARGET}"
aws --profile automation-user s3api list-objects \
--bucket "${BUCKET}"
policy components
{
"Effect": "Allow",
"Principal": "arn:aws:iam::529276214230:user/admin",
"Action": "s3:*",
"Resource": "arn:aws:s3:::dev-agency-website-s3bucketforwebsitecontent-11u56g1n9u9oo/*",
},
{
"Effect": "Allow",
"Principal": "*",
"Action": "s3:GetObject",
"Resource": "arn:aws:s3:::dev-agency-website-s3bucketforwebsitecontent-11u56g1n9u9oo/*",
"Condition": {
"StringLike": {
"aws:Referer": "79011a81-c048-4877-84f4-efe9577d7250"
}
}
},
{
"Effect": "Deny",
"Principal": "*",
"Action": "s3:GetObject",
"Resource": "arn:aws:s3:::dev-agency-website-s3bucketforwebsitecontent-11u56g1n9u9oo/*",
"Condition": {
"StringNotLike": {
"aws:Referer": "79011a81-c048-4877-84f4-efe9577d7250"
}
}
}
create_routing_rule() {
bucket=$1
prefix=$2
target=$3
redirect_location=$4
aws s3api put-object \
--bucket "${bucket}" \
--key "${prefix}${target}" \
--website-redirect-location "${redirect_location}" \
--content-length "0"
}
create_routing_rules() {
bucket=$1
prefix=$2
IFS=$'\r\n' GLOBIGNORE='*' rules=($(cat routing-rules/routing-rules.txt))
for rule in "${rules[@]}"
do
components=($(echo $rule | tr " " "\r\n"))
target="${components[1]}"
redirect_location="${components[2]}"
# echo "target=${target}, redirect_location=${redirect_location}"
create_routing_rule "${bucket}" "${prefix}" "${target}" "${redirect_location}"
done
}
create_routing_rules "dev-agency-website-s3bucketforwebsitecontent-1fbv8htrn7nna" "v0.0.1"
# on tag
BUILD_SOURCEBRANCHNAME=v0.0.1
BUILD_SOURCEBRANCH=refs/tags/v0.0.1
BUILD_SOURCEVERSION=f302ed7e007e57c118a8835f378ddd04f63e105c
BUILD_SOURCEVERSIONMESSAGE=output env variables
# on develop branch
BUILD_SOURCEBRANCHNAME=develop
BUILD_SOURCEBRANCH=refs/heads/develop
BUILD_SOURCEVERSION=e59a3dfea5bd88be3808f46b48da7ddd83e8b809
BUILD_SOURCEVERSIONMESSAGE=output env variables
# pipeline environment variables
LEIN_HOME=/usr/local/lib/lein
BUILD_QUEUEDBY=GitHub
AGENT_HOMEDIRECTORY=/home/vsts/agents/2.165.0
M2_HOME=/usr/share/apache-maven-3.6.3
BOOST_ROOT=/usr/local/share/boost/1.69.0
SYSTEM_STAGEDISPLAYNAME=__default
AGENT_VERSION=2.165.0
SYSTEM_JOBATTEMPT=1
GOROOT_1_11_X64=/usr/local/go1.11
ANDROID_HOME=/usr/local/lib/android/sdk
JAVA_HOME_11_X64=/usr/lib/jvm/zulu-11-azure-amd64
SYSTEM_TEAMFOUNDATIONSERVERURI=https://dev.azure.com/brianpfeil/
ImageVersion=20200301.1
AGENT_TOOLSDIRECTORY=/opt/hostedtoolcache
SYSTEM_DEFINITIONID=1
AGENT_DISABLELOGPLUGIN_TESTFILEPUBLISHERPLUGIN=true
LANG=C.UTF-8
AGENT_WORKFOLDER=/home/vsts/work
AZURE_EXTENSION_DIR=/opt/az/azcliextensions
SYSTEM_DEFINITIONNAME=pfeilbr.azure-pipelines-playground
AGENT_TEMPDIRECTORY=/home/vsts/work/_temp
INVOCATION_ID=71a915879cc04391a20e7d2867d21806
JAVA_HOME_12_X64=/usr/lib/jvm/zulu-12-azure-amd64
AWS_SECRET_ACCESS_KEY=***
BUILD_REQUESTEDFOR=Brian Pfeil
SYSTEM_PHASENAME=Job
ANDROID_SDK_ROOT=/usr/local/lib/android/sdk
SYSTEM_JOBIDENTIFIER=Job.__default
SYSTEM_PULLREQUEST_ISFORK=False
JAVA_HOME=/usr/lib/jvm/zulu-8-azure-amd64
SYSTEM_JOBPARALLELISMTAG=Private
DOTNET_SKIP_FIRST_TIME_EXPERIENCE=1
USER=vsts
BUILD_REASON=IndividualCI
AGENT_OS=Linux
SYSTEM_ISSCHEDULED=False
BUILD_SOURCEVERSION=f302ed7e007e57c118a8835f378ddd04f63e105c
ENDPOINT_URL_SYSTEMVSSCONNECTION=https://dev.azure.com/brianpfeil/
BUILD_SOURCEBRANCH=refs/tags/v0.0.1
GRADLE_HOME=/usr/share/gradle
SYSTEM_WORKFOLDER=/home/vsts/work
BUILD_QUEUEDBYID=a399e9b2-ba17-47ed-9005-8c263530afdf
AGENT_DISABLELOGPLUGIN_TESTRESULTLOGPLUGIN=true
AGENT_ROOTDIRECTORY=/home/vsts/work
PWD=/home/vsts/work/1/s
ImageOS=ubuntu18
HOME=/home/vsts
AGENT_ID=8
GOROOT=/usr/local/go1.12
JOURNAL_STREAM=9:31906
SYSTEM_TOTALJOBSINPHASE=1
SYSTEM_COLLECTIONURI=https://dev.azure.com/brianpfeil/
RUNNER_TOOLSDIRECTORY=/opt/hostedtoolcache
JAVA_HOME_8_X64=/usr/lib/jvm/zulu-8-azure-amd64
AGENT_OSARCHITECTURE=X64
SYSTEM_CULTURE=en-US
SYSTEM_TEAMPROJECTID=398b5300-9203-4d2c-957c-82eedb6aea92
VSTS_AGENT_PERFLOG=/home/vsts/perflog
CONDA=/usr/share/miniconda
PIPELINE_WORKSPACE=/home/vsts/work/1
GOROOT_1_13_X64=/usr/local/go1.13
BOOST_ROOT_1_69_0=/usr/local/share/boost/1.69.0
SYSTEM_JOBPOSITIONINPHASE=1
DEBIAN_FRONTEND=noninteractive
SYSTEM_JOBID=12f1170f-54f2-53f3-20dd-22fc7dff55f9
AGENT_JOBNAME=Job
AGENT_ACCEPTTEEEULA=True
SYSTEM_STAGEATTEMPT=1
SYSTEM_PIPELINESTARTTIME=2020-03-05 22:20:12+00:00
STACK_NAME=dev-agency-website
BUILD_REPOSITORY_URI=https://github.com/pfeilbr/azure-pipelines-playground
AGENT_READONLYVARIABLES=true
BUILD_REPOSITORY_PROVIDER=GitHub
SYSTEM_TASKINSTANCENAME=CmdLine
GOROOT_1_12_X64=/usr/local/go1.12
GECKOWEBDRIVER=/usr/local/share/gecko_driver
SYSTEM_PLANID=b5cbb7c3-6a1c-4c2f-85da-7cd89b56bfcc
BUILD_DEFINITIONVERSION=13
TASK_DISPLAYNAME=deploy
SYSTEM_HOSTTYPE=build
CHROMEWEBDRIVER=/usr/local/share/chrome_driver
BUILD_STAGINGDIRECTORY=/home/vsts/work/1/a
MSDEPLOY_HTTP_USER_AGENT=VSTS_1cc55890-46d6-40c1-9714-8220ddd17bd5_build_1_0
BUILD_REQUESTEDFOREMAIL=brian.pfeil@gmail.com
TF_BUILD=True
AZURE_HTTP_USER_AGENT=VSTS_1cc55890-46d6-40c1-9714-8220ddd17bd5_build_1_0
BUILD_REPOSITORY_LOCALPATH=/home/vsts/work/1/s
SYSTEM_PHASEDISPLAYNAME=Job
BUILD_REPOSITORY_NAME=pfeilbr/azure-pipelines-playground
BUILD_ARTIFACTSTAGINGDIRECTORY=/home/vsts/work/1/a
SYSTEM_TASKDEFINITIONSURI=https://dev.azure.com/brianpfeil/
BUILD_REPOSITORY_GIT_SUBMODULECHECKOUT=False
BUILD_SOURCEVERSIONAUTHOR=Brian Pfeil
SYSTEM_TASKDISPLAYNAME=deploy
SYSTEM_STAGENAME=__default
VSTS_PROCESS_LOOKUP_ID=vsts_f104e61b-5db9-493c-8204-4ffeb8973a65
BUILD_REPOSITORY_ID=pfeilbr/azure-pipelines-playground
BUILD_SOURCEVERSIONMESSAGE=output env variables
SYSTEM=build
SYSTEM_PHASEATTEMPT=1
VCPKG_INSTALLATION_ROOT=/usr/local/share/vcpkg
SYSTEM_JOBNAME=__default
REGION=us-east-1
SYSTEM_PHASEID=3a3a2a60-14c7-570b-14a4-fa42ad92f52a
AGENT_MACHINENAME=fv-az755
COMMON_TESTRESULTSDIRECTORY=/home/vsts/work/1/TestResults
agent.jobstatus=Succeeded
JAVA_HOME_7_X64=/usr/lib/jvm/zulu-7-azure-amd64
BUILD_DEFINITIONNAME=pfeilbr.azure-pipelines-playground
AWS_ACCESS_KEY_ID=AKIAXWO2SDPLDE43XM4W
SYSTEM_ARTIFACTSDIRECTORY=/home/vsts/work/1/a
SHLVL=2
BUILD_REQUESTEDFORID=5d5ba760-cdcf-6c15-8d80-c37de4cf7631
AGENT_NAME=Hosted Agent
BUILD_BUILDNUMBER=20200305.5
BUILD_SOURCEBRANCHNAME=v0.0.1
SYSTEM_JOBDISPLAYNAME=Job
BUILD_SOURCESDIRECTORY=/home/vsts/work/1/s
LEIN_JAR=/usr/local/lib/lein/self-installs/leiningen-2.9.2-standalone.jar
BUILD_BUILDURI=vstfs:///Build/Build/53
SYSTEM_SERVERTYPE=Hosted
SYSTEM_TIMELINEID=b5cbb7c3-6a1c-4c2f-85da-7cd89b56bfcc
AGENT_RETAINDEFAULTENCODING=false
SYSTEM_TASKINSTANCEID=9c939e41-62c2-5605-5e05-fc3554afc9f5
SYSTEM_DEFAULTWORKINGDIRECTORY=/home/vsts/work/1/s
AGENT_JOBSTATUS=Succeeded
ANT_HOME=/usr/share/ant
BUILD_REPOSITORY_CLEAN=False
SYSTEM_TEAMPROJECT=project01
PATH=/usr/share/rust/.cargo/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/snap/bin
SELENIUM_JAR_PATH=/usr/share/java/selenium-server-standalone.jar
CHROME_BIN=/usr/bin/google-chrome
SYSTEM_COLLECTIONID=1cc55890-46d6-40c1-9714-8220ddd17bd5
BUILD_CONTAINERID=5246219
SYSTEM_TEAMFOUNDATIONCOLLECTIONURI=https://dev.azure.com/brianpfeil/
GIT_TERMINAL_PROMPT=0
AGENT_BUILDDIRECTORY=/home/vsts/work/1
SYSTEM_STAGEID=96ac2280-8cb4-5df5-99de-dd2da759617d
SYSTEM_ENABLEACCESSTOKEN=SecretVariable
BUILD_BINARIESDIRECTORY=/home/vsts/work/1/b
BUILD_BUILDID=53
${BUILD_REPOSITORY_URI}/tree/${BUILD_SOURCEBRANCHNAME}
${BUILD_REPOSITORY_URI}/commit/${BUILD_SOURCEVERSION}
# athena create table for CloudFront logs
CREATE EXTERNAL TABLE IF NOT EXISTS default.cloudfront_logs_stagingallthecloudbits (
`date` DATE,
time STRING,
location STRING,
bytes BIGINT,
request_ip STRING,
method STRING,
host STRING,
uri STRING,
status INT,
referrer STRING,
user_agent STRING,
query_string STRING,
cookie STRING,
result_type STRING,
request_id STRING,
host_header STRING,
request_protocol STRING,
request_bytes BIGINT,
time_taken FLOAT,
xforwarded_for STRING,
ssl_protocol STRING,
ssl_cipher STRING,
response_result_type STRING,
http_version STRING,
fle_status STRING,
fle_encrypted_fields INT,
c_port INT,
time_to_first_byte FLOAT,
x_edge_detailed_result_type STRING,
sc_content_type STRING,
sc_content_len BIGINT,
sc_range_start BIGINT,
sc_range_end BIGINT
)
ROW FORMAT DELIMITED
FIELDS TERMINATED BY '\t'
LOCATION 's3://dev-agency-website-cloudfrontlogsbucket-jf9ykpajh7n1/cloudfront/logs/staging.allthecloudbits.com/'
TBLPROPERTIES ( 'skip.header.line.count'='2' )
# query
SELECT * FROM "default"."cloudfront_logs_stagingallthecloudbits" limit 10
# CF dist WAF association
myDistribution
Type AWS::CloudFront::Distribution
Properties:
DistributionConfig:
WebACLId: !Ref : MyWebACL
# aws managed rule groups
https://docs.aws.amazon.com/waf/latest/developerguide/aws-managed-rule-groups-list.html
AWS::WAFv2::WebACL
Type: AWS::WAFv2::WebACL
Properties:
Name: waf-webacl
Scope: CLOUDFRONT
Description: CloudFront WAF WebACL
DefaultAction:
Allow: {}
VisibilityConfig:
SampledRequestsEnabled: true
CloudWatchMetricsEnabled: true
MetricName: ExampleWebACLMetric
Rules:
- Name: RuleWithAWSManagedRules
Priority: 0
OverrideAction:
Count: {}
VisibilityConfig:
SampledRequestsEnabled: true
CloudWatchMetricsEnabled: true
MetricName: RuleWithAWSManagedRulesMetric
Statement:
ManagedRuleGroupStatement:
VendorName: AWS
Name: AWSManagedRulesCommonRuleSet
ExcludedRules: []
Twitter • Reddit
