Zipkin

code for article pfeilbr/zipkin-playground

learn zipkin the distributed tracing system

Prerequisites

docker

Running

running zipkin server and viewing web ui

# run zipkin server (NOTE: this is non-blocking and will return)
docker run -d -p 9411:9411 openzipkin/zipkin

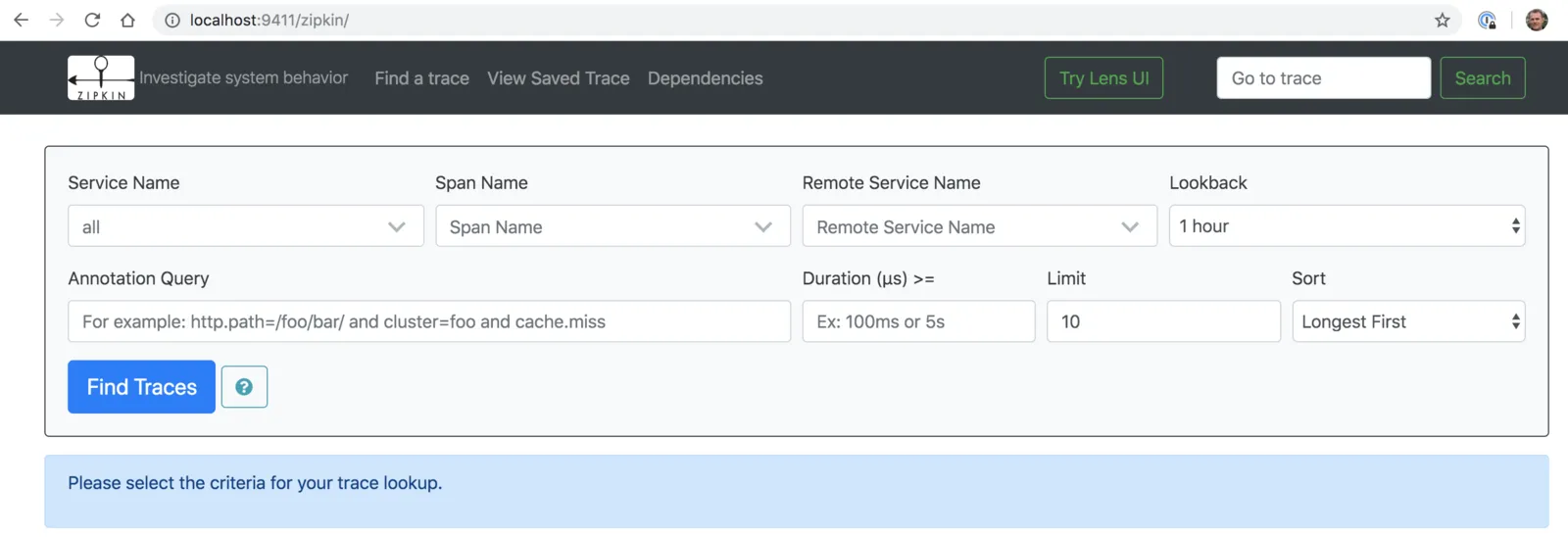

# open zipkin web ui
open http://localhost:9411/zipkin/

running a web app with frontend and backend the sends traces to zipkin server. see frontend.js for how code is instrumented to send traces to zipkin server.

# download zipkin javascript example
curl -LO https://github.com/openzipkin/zipkin-js-example/archive/master.zip
unzip master.zip

cd zipkin-js-example-master/web

# install dependencies
npm install

# had to run the following also.  this make be fixed
npm install node-fetch

# in `frontend.js` change `const {wrapAxios} = require("zipkin-instrumentation-axiosjs");`
# to `const wrapAxios = require("zipkin-instrumentation-axiosjs");`

# create bundle
npm run browserify

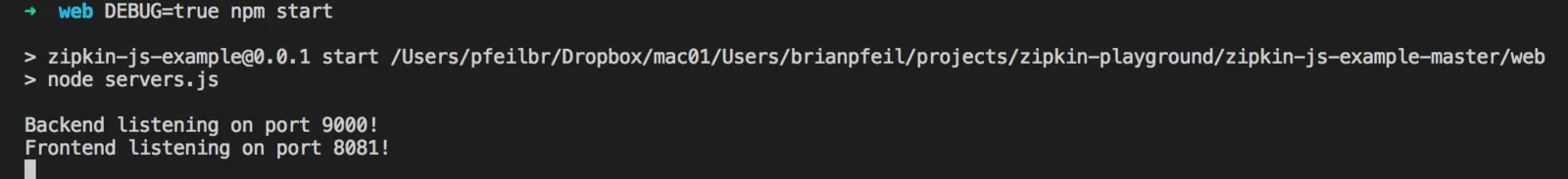

# run frontend and backend
DEBUG=true npm start

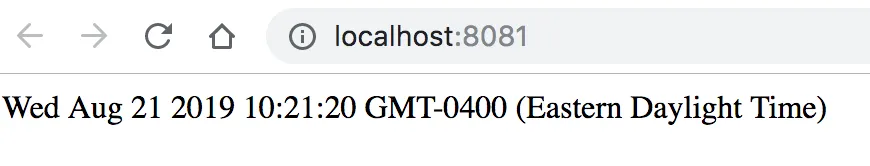

# open app.  displays datetime and sends traces to zipkin sever.
open http://localhost:8081

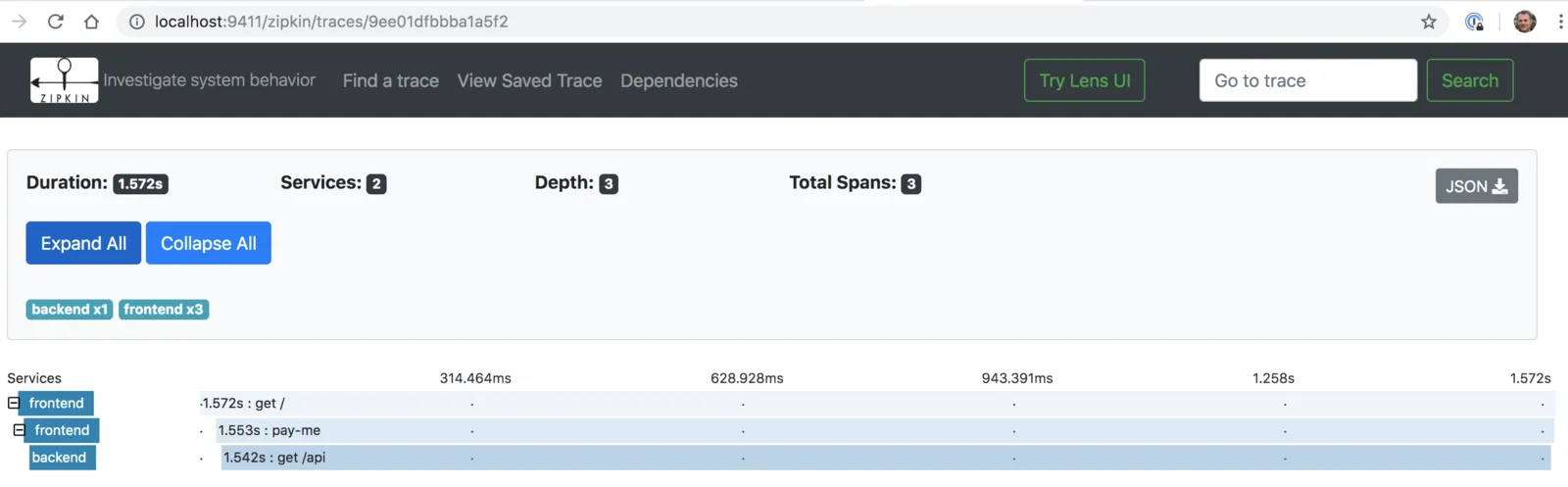

# now open zipkin web ui to view traces
open http://localhost:9411/zipkin/

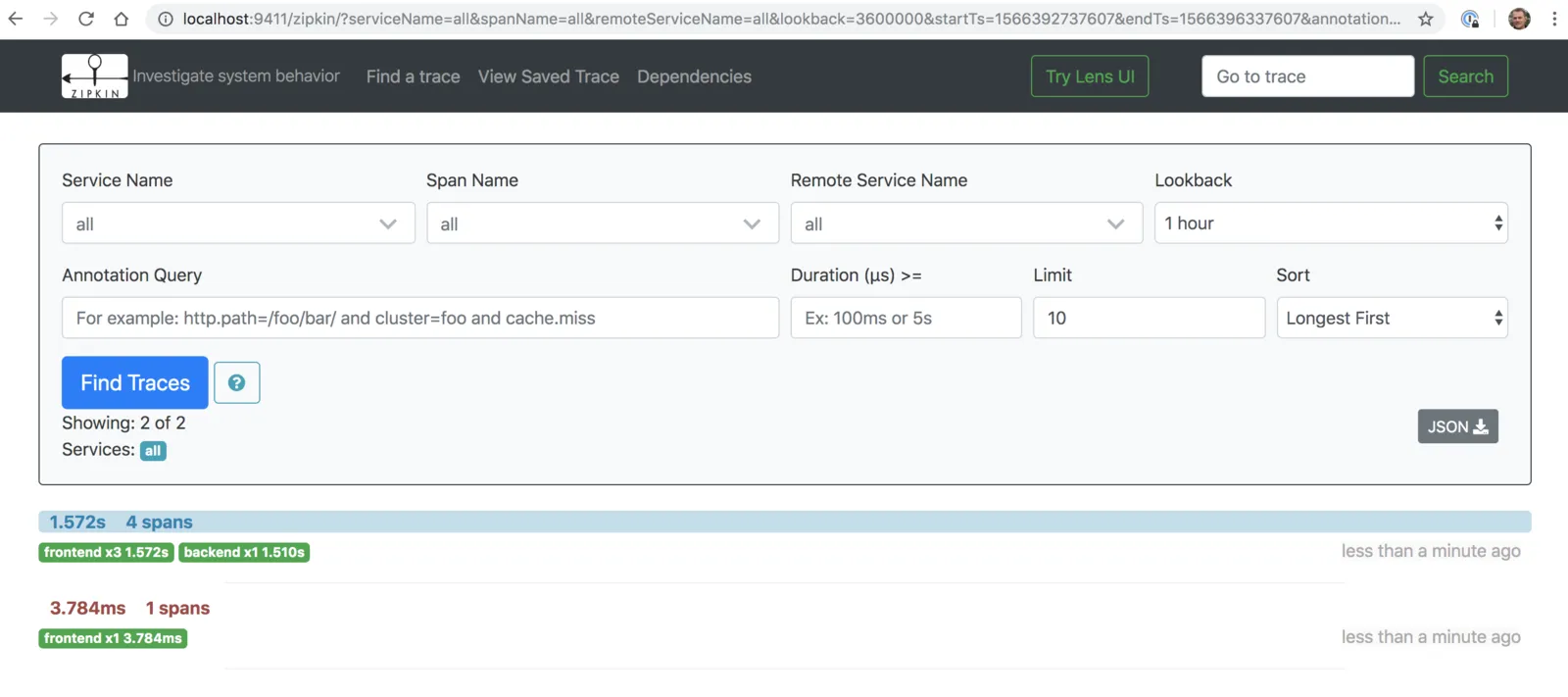

# click the [Find Traces] button

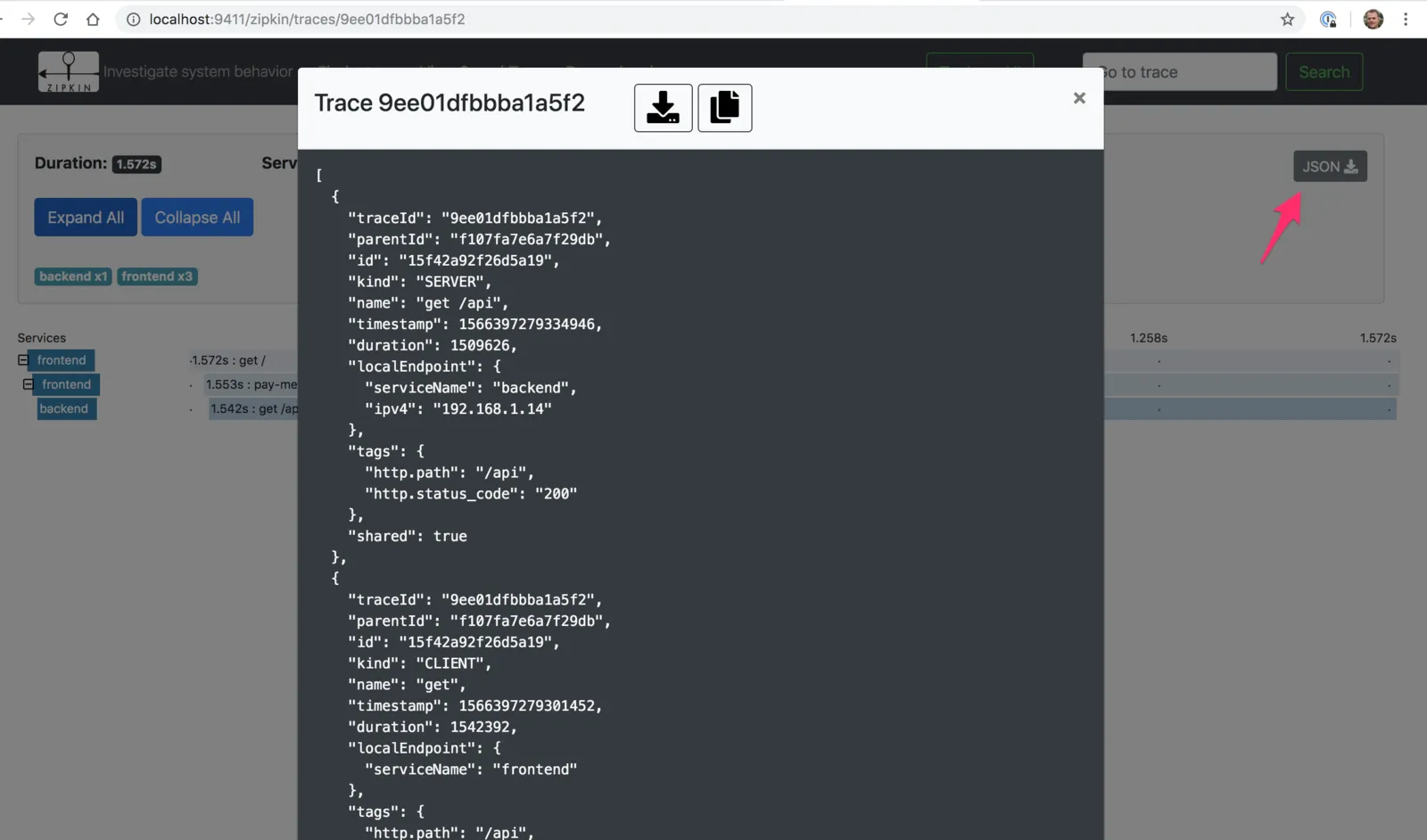

view JSON trace data by clickint the [JSON] button

[
  {
    "traceId": "9ee01dfbbba1a5f2",
    "parentId": "f107fa7e6a7f29db",
    "id": "15f42a92f26d5a19",
    "kind": "SERVER",
    "name": "get /api",
    "timestamp": 1566397279334946,
    "duration": 1509626,
    "localEndpoint": {
      "serviceName": "backend",
      "ipv4": "192.168.1.14"
    },
    "tags": {
      "http.path": "/api",
      "http.status_code": "200"
    },
    "shared": true
  },
  {
    "traceId": "9ee01dfbbba1a5f2",
    "parentId": "f107fa7e6a7f29db",
    "id": "15f42a92f26d5a19",
    "kind": "CLIENT",
    "name": "get",
    "timestamp": 1566397279301452,
    "duration": 1542392,
    "localEndpoint": {
      "serviceName": "frontend"
    },
    "tags": {
      "http.path": "/api",
      "http.status_code": "200"
    }
  },
  {
    "traceId": "9ee01dfbbba1a5f2",
    "parentId": "9ee01dfbbba1a5f2",
    "id": "f107fa7e6a7f29db",
    "name": "pay-me",
    "timestamp": 1566397279295227,
    "duration": 1552644,
    "localEndpoint": {
      "serviceName": "frontend"
    }
  },
  {
    "traceId": "9ee01dfbbba1a5f2",
    "id": "9ee01dfbbba1a5f2",
    "kind": "SERVER",
    "name": "get /",
    "timestamp": 1566397279276961,
    "duration": 1572319,
    "localEndpoint": {
      "serviceName": "frontend",
      "ipv4": "192.168.1.14"
    },
    "tags": {
      "http.path": "/",
      "http.status_code": "200"
    }
  }
]
